MPPT PV 100V Input Home Battery Inverter Rural Areas Inverter Off Grid 3kw

  • 1
  • 2

Brand Name : JHOTA

Model Number : HF2430S60-100

Certification : CE/EMC/FCC/CETL/IEC61683

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100pcs

Delivery Time : 20-30 days

Packaging Details : Carton

AC Output Voltage Waveform : Pure Sine Wave

Battery Voltage : 24V

Frequency : 50Hz/ 60Hz (Automatic Detection)

Mains Charging Efficiency : >95%

Switch Time (bypass and inverter) : 10ms(Typical Value)

Contact Now

JHOTA Solar 3000W PV 100V Input AC 220/230V OutPut Match 24V battery Pure Sine Wave Off-grid Inverter Optional Wifi Module


Quick Details:

1. MOQ: 5
2. Best choice for home energy storage
3. Warrenty: 3 Years
4. AC Input Frequency: 50Hz/ 60Hz (Automatic Detection)
5. Mains AC Input Charging Efficiency: >95%
6. Switch Time (bypass and inverter): 10ms(Typical Value)

Description:

This JHOTA solar inverter has a power output capacity of 3.0kW and works with a 24-volt battery pack.
If you want to avoid those constant power outages, an off-grid solar inverter is the best solution. They are the best option for rural areas without grid power.
We do not recommend using modified sine wave inverters for most applications; most of our off-grid customers use pure sine wave inverters to avoid these potential problems.


Specification:

Battery Input
Battery type Sealed, FLood, GEL, LFP, Ternary
Rated Battery Input Voltage 24V ( Minimum Startup Voltage 22V)
Hybrid Charging Maximum Charging Current 140A
Battery Voltage Range 20Vdc~33Vdc ± 0.3Vdc(Undervoltage Warning/Shutdown Voltage/Overvoltage
Warning/Overvoltage Recovery...)
Solar Input
Maximum PV Open-circuit Voltage 100Vdc
PV Working Voltage Range 30-100Vdc
MPPT Voltage Range 30-85Vdc
Maximum PV Input Current 40A
Maximum PV Input Power 1600W
Maximum PV Charging Current 60A
AC Input (generator/grid)
Mains Maximum Charging Current 80A
Rated Input Voltage 220/230Vac
Input Voltage Range UPS Mains Mode:(170Vac~280Vac)土2% APL Generator Mode:(90Vac-280Vac)±2%
Frequency 50Hz / 60Hz (Automatic Detection)
Mains Charging Efficiency >95%
Switch Time (bypass andinverter) 10ms (Typical Value)
Maximum Bypass Overload Current 30A
AC Output
Output Voltage Waveform Pure Sine Wave
Rated Output Voltage (Vac) 230Vac (200/208/220/240Vac)
Rated Output Power (VA) 3000 (2600/2700/2850/3000)
Rated Output Power(W) 3000 (2600/2700/2850/3000)
Peak Power 6000VA
On-load Motor Capacity 2HP
Output Frequency Range(Hz) 50Hz ± 0.3Hz / 60Hz ± 0.3Hz
Maximum Efficiency >92%
No-load Loss Non Energy-saving Mode: ≤50W Energy-saving Mode: ≤25W (Manual Setup)
General
Certificate CE(IEC 62109-1)
EMC Certification Level EN61000,C2
Working Temperature Range -15°C ~ 55°C
Storage Temperature Range -25°C ~ 60°C
Humidity Range 5% to 95% (Conformal Coating Protection)
Dimensions 378mm*280mm*103mm
Weight 6.8KG

Advantages:

1. Advanced MPPT technology, the efficiency is as high as 99.9%.
2. Such as wall surface; to install the all-in-one machine, guarantee there is sufficient air flowing.
3. Intelligent variable speed fan, effective heat dissipation, prolong system life.
4. 360° all-round protection, with multiple protection functions.
5. Perfect protection, including short circuit protection, overvoltage and undervoltage protection, overload protection.
6. Power saving: power saving mode automatically reduces power consumption at zero-load.

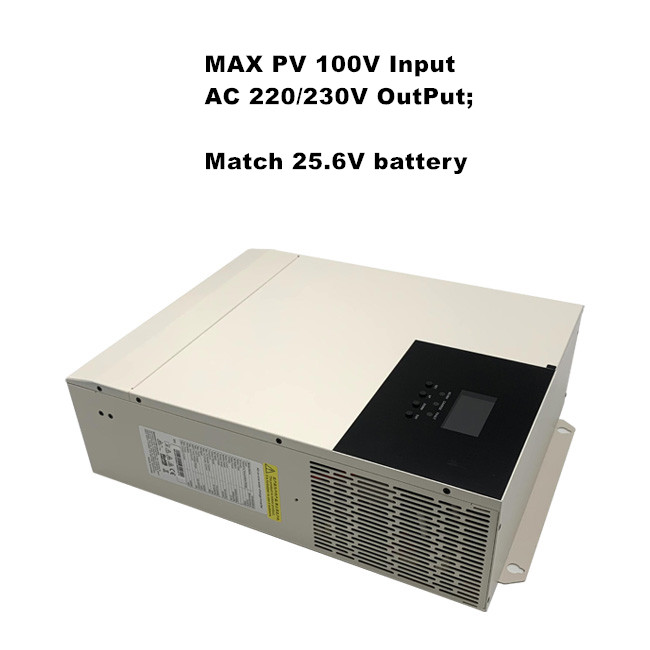

Product image:
MPPT PV 100V Input Home Battery Inverter Rural Areas Inverter Off Grid 3kwMPPT PV 100V Input Home Battery Inverter Rural Areas Inverter Off Grid 3kw
